Some winch users require above average speeds for their winches. The Hurricane gear set has been designed to give increased speed & improved strength.
This set of two gears replaces the BrakeShaft & the lower drive gear (7550) in your 8274 or GP winch. The new 15 tooth BrakeShaft offers improved tooth contact and has a built in small cam gear for enhanced reliability. The large drive gear has been reduced to from 66 to 62 teeth and offers the following speed increases-
Standard ratios Fitted with Hurricane gears
+ 00% 133.28:1 Becomes +31% 91.82:1
+ 15% 115.41:1 Becomes +40% 79.50:1
+ 25% 100.94:1 Becomes +48% 69.53:1
+ 40% 83.75:1 Becomes +57% 57.69:1
+ 50% 66.56:1 Becomes +66% 45.86:1
+ 60% 53.68:1 Becomes +72% 36.98:1
The Hurricane gears offer the following speed increases when combined with the NEW Hellfire gears:
Standard GP100 ratios Fitted with Hurricane and Hellfire gears
+ 00% 133.28:1 Becomes +69% 40.92:1
+ 15% 115.41:1 Becomes +73% 35.43:1
+ 25% 100.94:1 Becomes +77% 30.99:1
+ 40% 83.75:1 Becomes +81% 25.71:1
+ 50% 66.56:1 Becomes +85% 20.43:1
+ 60% 53.68:1 Becomes +88% 16.48:1

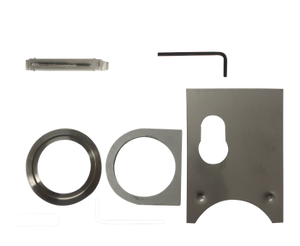

Please note if you are fitting this kit to a standard Warn 8274 lower housing that has not already been fitted with a Gigglepin SuperShaft you will require our fitting/Shim Kit (G19008) in order to install this gearset. Please select from the options if you require this.
Please note these are only compatible with the Gigglepin Large Cam Gear.
