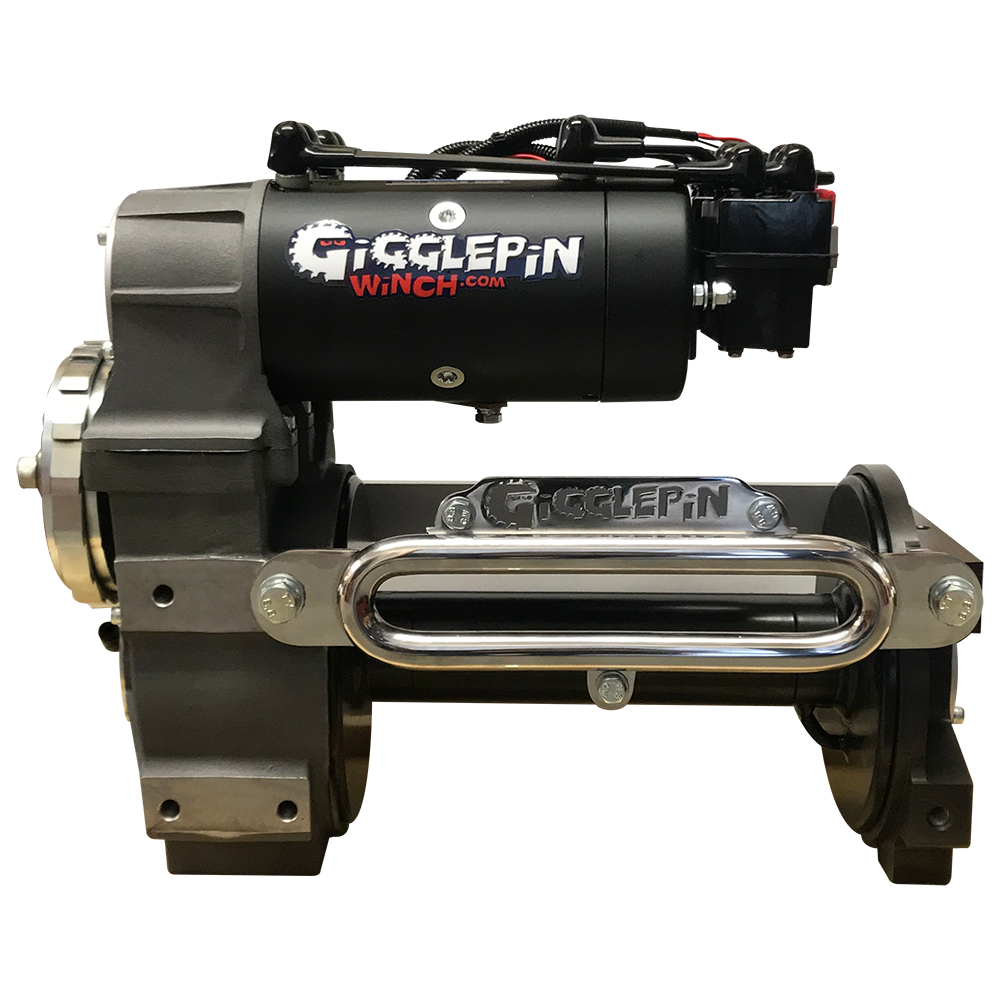

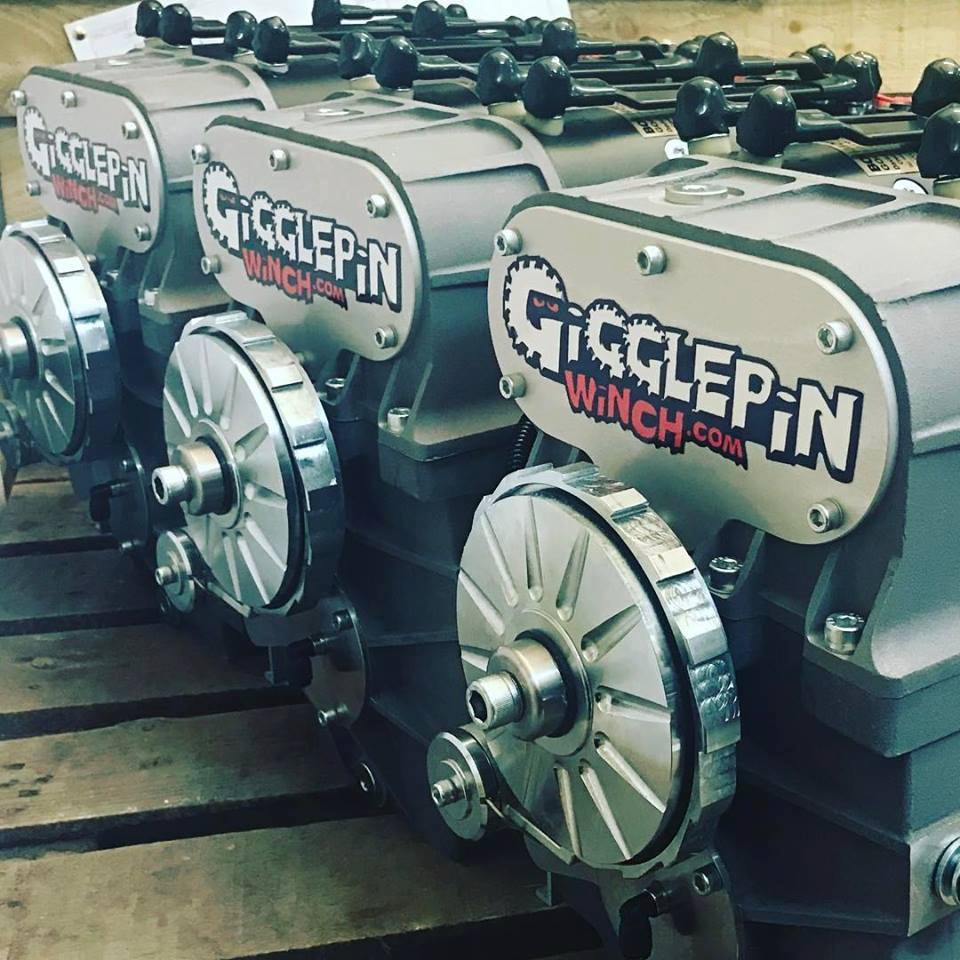

This electric winch has been tested vigorously, the GP100 won its first competitive outing and has been dominating the off-road world (worldwide) ever-since, winning such events as the Croatia Trophy, Breslau Rallye, Graf Trophy, Portugal Extrem, Thailand Extreme, the Ultra4 European Championship, to name a few. With off-load line speeds from 24m up to 182m per minute, there is a GP100 for everyone!
Gigglepin Winches are proud to announce their NEW 2-SPEED family!
2-SPEED Winches, 2-SPEED Top Housings and 2-SPEED Gear Sets.
The Gigglepin 2-SPEED Gear family offer unrivalled versatility, letting you seamlessly change between low and high gears at the flick of a switch. This innovation marks a first for Gigglepin, combining our renowned reliability and build quality with 2-speed functionality in one unit. Designed for those who demand precision and speed, this cutting-edge 2-SPEED is perfect for any challenge.
With over three years of testing in the field and on test rigs, these 2-SPEED units have already proven themselves by winning events in Europe and withstanding imposed loads of over 13 tons during tests.
The NEW 2-SPEED gives you Power, Speed and Control.
Power: Use low gear to give you unrivalled strength and Power
Speed: Switch to high gear and unleash the Speed for fast recoveries and line retrieval.
Control: Two ratios allow you to have Control over all your recovery situations allowing you to be safer and more efficient
What is the NEW 2-SPEED family?
The NEW 2-SPEED family is available as three different options. You can choose from:
- 2-SPEED Winches - Factory built GP100, GP50 and GP25 Winches with the NEW 2-SPEED gears installed and ready for action

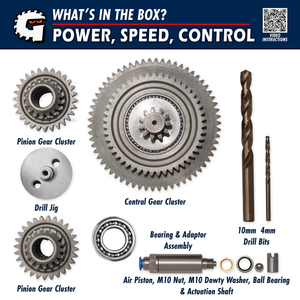

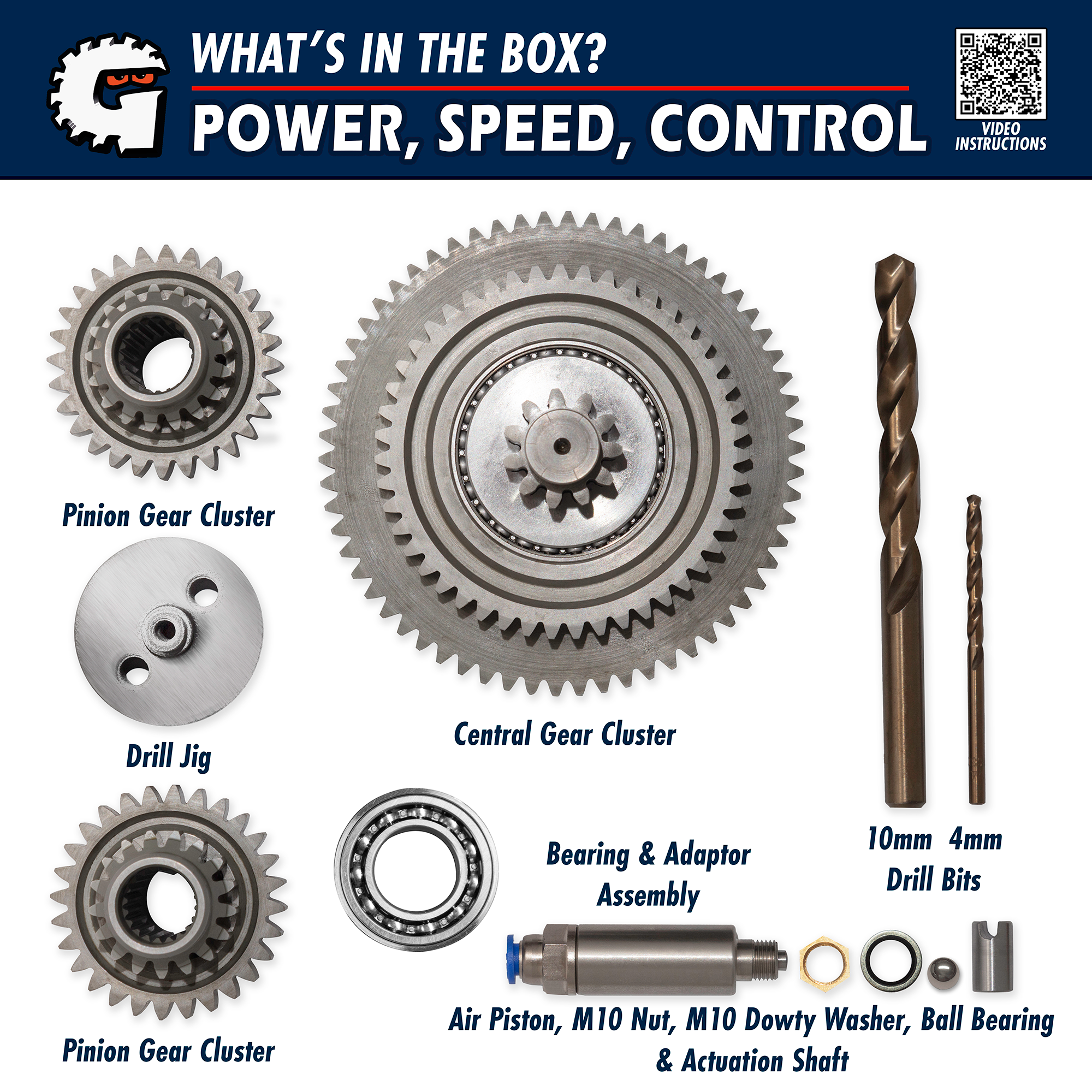

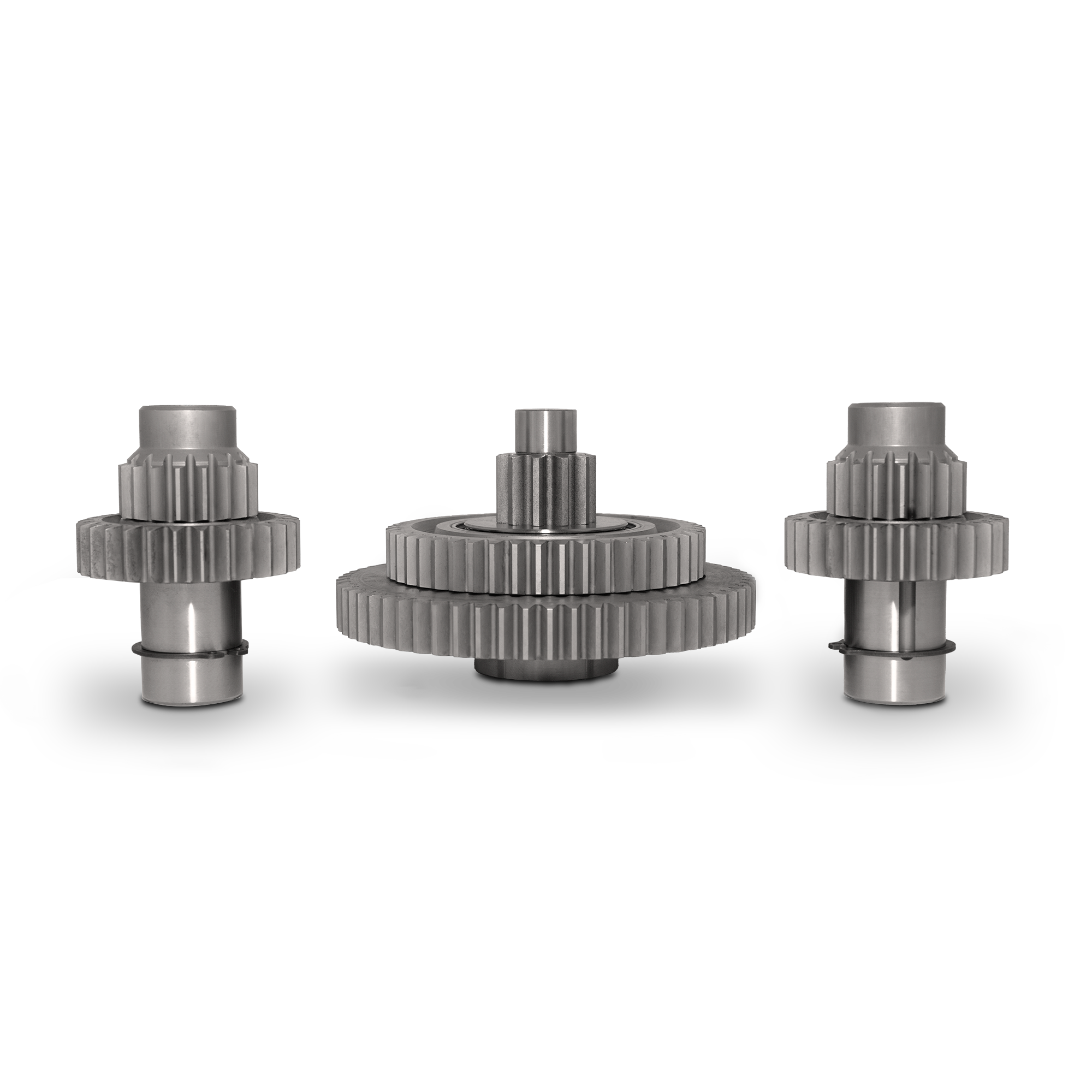

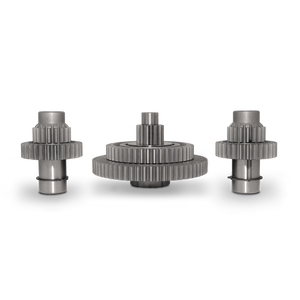

- 2-SPEED Gear Sets - these gear sets can be retro fitted to upgrade your existing GP100, GP50 and GP25; or any winch fitted with a Gigglepin top housing manufactured after 2017

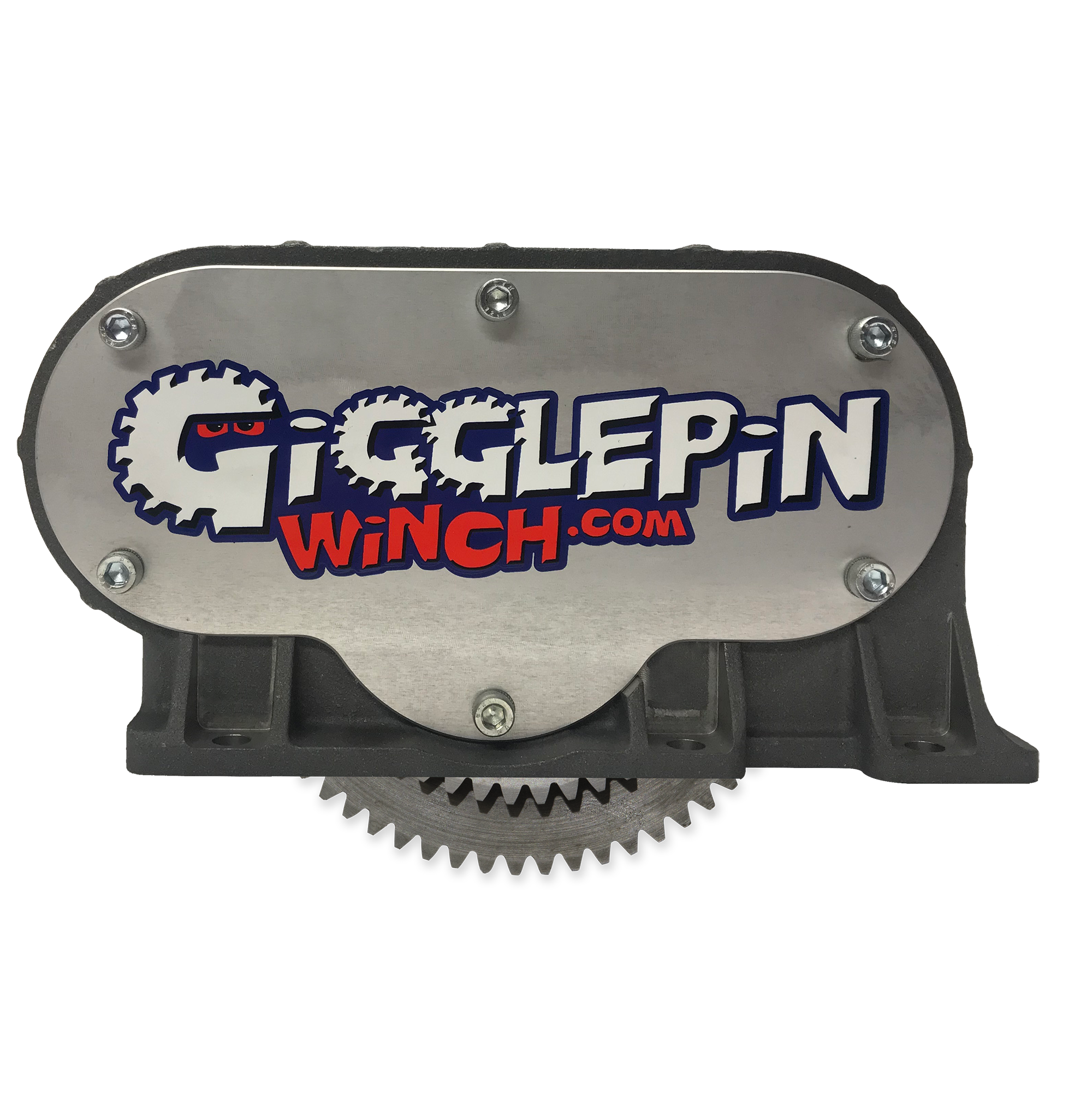

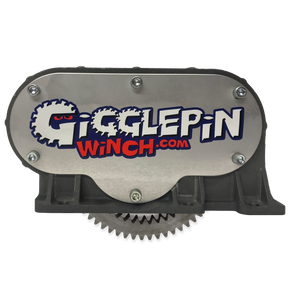

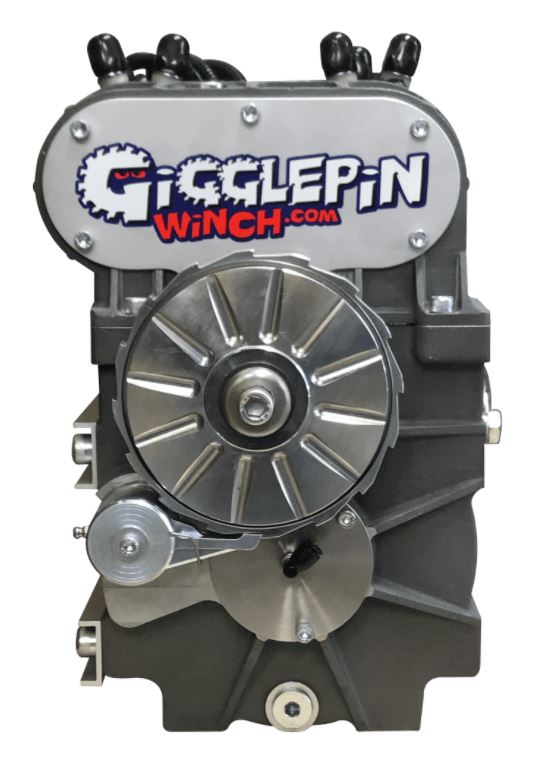

- 2-SPEED Top Housings - these are available in Twin-Motor and Single-Motor configurations to fit all existing models and older Gigglepin GP80, Warn 8274 and 8074 winches
What makes the NEW 2-SPEED so good?
The NEW 2-SPEED family from Gigglepin Winches raises the bar for performance winching and has the following key features:
- Multiple gear choices in low and high ratios
- Timed gearing for silky smooth operation
- Easy to fit to existing winches
- Heat treated gears and engagement dogs for unparalleled strength
- Air activation that defaults to the low ratio if air is lost
- Externally mounted air system means no possibility of air leaks inside the winch
- Stainless steel external hardware for corrosion resistance
- 7 engagement dogs for maximum strength
- Neutral gear positioning allowing gear changes while at speed
- Proven to handle over 13 tons of loading during testing
- Gigglepin reliability and build quality with worldwide support
What ratios are available?
Low ratio options:
+ 00% (133.28:1)
+ 15% (115.41:1)
+ 25% (100.94:1)
+ 40% (83.75:1)
High Ratio options:
+ 15% (115.41:1)
+ 25% (100.94:1)
+ 40% (83.75:1)
+ 50% (66.56:1)
+ 60% (53.68:1)
Need even more speed? Pair with Hellfire or Hurricane Gears! Note: Hell–Fire gear ratios have been updated to work with the NEW 2-SPEED Gears.
Can be fitted with Hurricane and/or Hellfire Gears at time of order at no extra cost - see chart below.
What else do I need to operate 2-SPEED systems?
The New 2-SPEED family require a regulated air feed to make them operate. You will need an air supply with a minimum air pressure of 80psi and a maximum pressure of 150psi to operate the system. We recommend using ARB mini, high-output and twin motor compressors.
It also has the following amazing features-
- Super smooth air operated FreeSpool drum,
- Stronger, lightweight, cast aluminium housings,
- High performance EN36 heat treated gears,
- Three drum sizes - Short 10” (254mm), Standard 13” (+76mm), Long 14.5” (+114mm),
- 11 Roller bearings for silky smooth operation,
- Removable stainless steel Brake Pawl mount,
- Fully submersible,

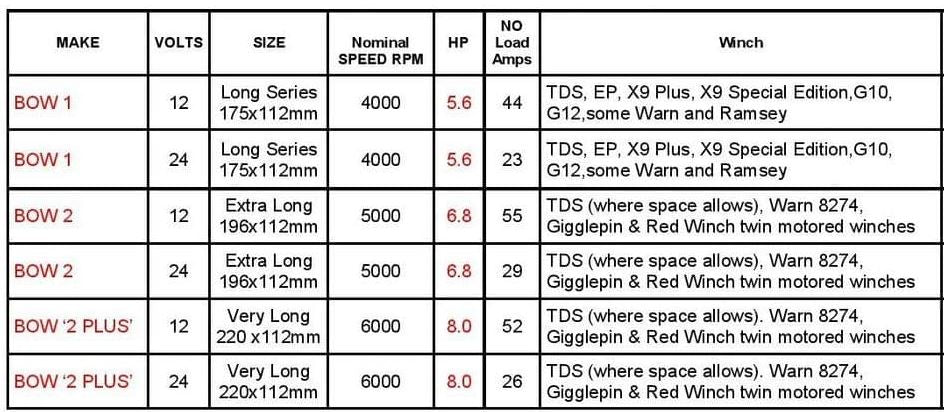

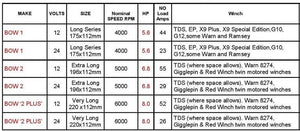

- Supplied with Bow Motor 2 (12V or 24V),
- Gigglepin Solenoids, PowerBars and Wiring (Pro 100 as standard, Pro 150 as optional extra)
- 18 symmetrical M12 mounting points,
- Super strong polished stainless steel Fairlead,
- External ratchet brake,
- Billet drum end plate with rear BraceBars,
- Oil Filled gearbox for perfect lubrication,
- Large drain and filler plugs,
- Serial numbered for traceability,
- Can be supplied with Gigglepin MBS system,
- Designed and built in UK.
THE BEST WINCH YOU WILL EVER OWN!
3 Year Mechanical Warranty (Motors and Solenoids not included)
* Can be supplied with Hellfire Gears to give more ratio options at no extra cost!
3 Year Warranty on mechanical parts (motors and solenoids not included)
Dimensions sheets for all three drum sizes available to download here -
Standard Drum (76mm Longer than Warn 8274)
Short Drum (Same as Warn 8274)
Long Drum (114mm Longer than Warn 8274)
Winch Weights & Shipping Weights -
| Winch Type | Actual Weight | Shipping Weight |
|---|---|---|
| GP100 Standard Drum | 57.5kg | 67kg |
| GP100 Short Drum | 55.6kg | 65kg |
| GP100 Long Drum | 58.5kg | 68kg |
| GP100 Standard Drum with MBS | 60.5kg | 70kg |
| GP100 Short Drum with MBS | 59.6kg | 68kg |
| GP100 Long Drum with MBS | 61.5kg | 71kg |

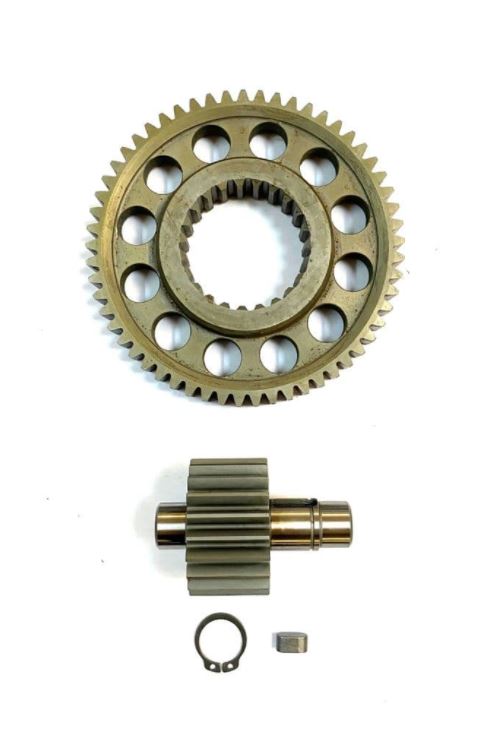

The Hurricane Gear set offers the following speed increases:
Standard ratios Fitted with Hurricane gears
+ 00% 133.28:1 Becomes +31% 91.82:1
+ 15% 115.41:1 Becomes +40% 79.50:1
+ 25% 100.94:1 Becomes +48% 69.53:1
+ 40% 83.75:1 Becomes +57% 57.69:1
+ 50% 66.56:1 Becomes +66% 45.86:1
+ 60% 53.68:1 Becomes +72% 36.98:1

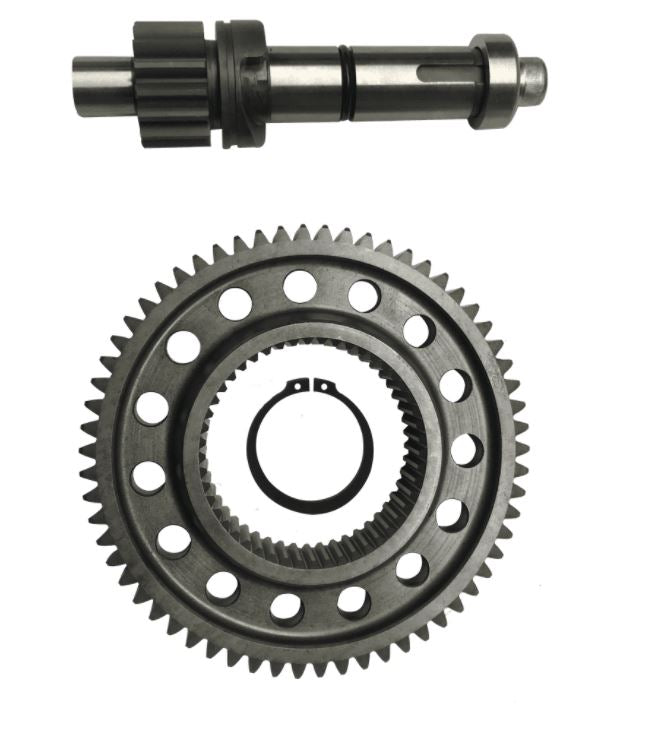

The NEW Hellfire gears are made from our usual heat treated EN36 steel, and offer the following speed increases when using a standard GP mainshaft:
Standard GP100 ratios Fitted with Hellfire gears
+ 00% 133.28:1 Becomes +55% 59.39:1
+ 15% 115.41:1 Becomes +61% 51.43:1
+ 25% 100.94:1 Becomes +66% 44.98:1
+ 40% 83.75:1 Becomes +72% 37.32:1
+ 50% 66.56:1 Becomes +78% 29.66:1
+ 60% 53.68:1 Becomes +82% 23.92:1
The NEW Hellfire gears offer the following speed increases when combined with the Hurricane gears:
Standard GP100 ratios Fitted with Hurricane and Hellfire gears
+ 00% 133.28:1 Becomes +69% 40.92:1
+ 15% 115.41:1 Becomes +73% 35.43:1
+ 25% 100.94:1 Becomes +77% 30.99:1
+ 40% 83.75:1 Becomes +81% 25.71:1
+ 50% 66.56:1 Becomes +85% 20.43:1
+ 60% 53.68:1 Becomes +88% 16.48:1
24V System available upon request.
If you are unsure of your winching requirements, or have any questions or queries, please get in touch.
